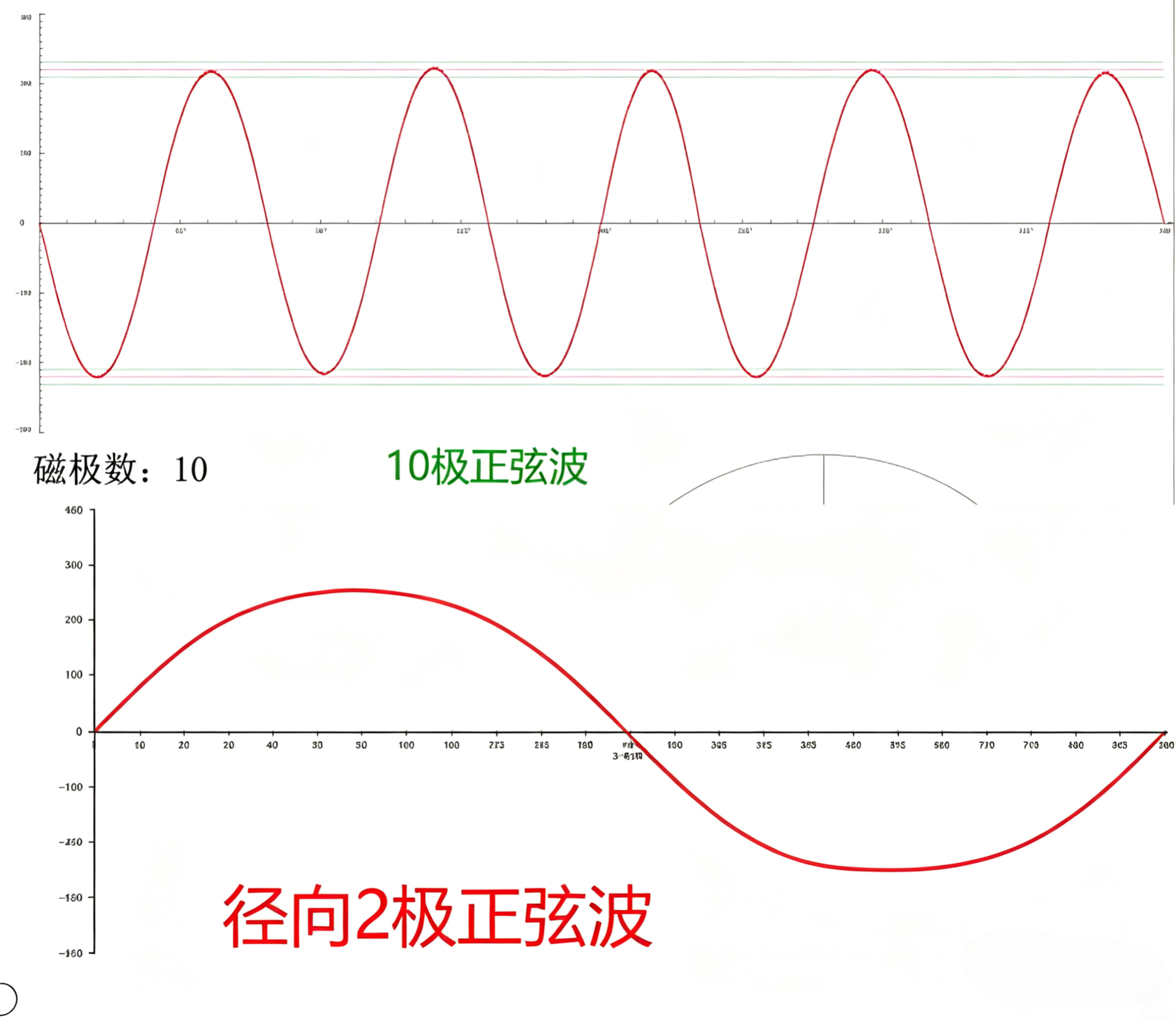

Various multipole magnetic ring waveform displays

Common waveforms include sine wave, saddle wave, and square wave

Sensor, encoder magnet

It is mostly used in precision instruments and equipment, and has a series of advantages such as small size, light weight, high efficiency, convenient speed regulation, low maintenance, long life, and no electromagnetic interference; the number of magnetized poles can reach 96 poles, and the magnetic field strength can reach 1000 Gaussian above.

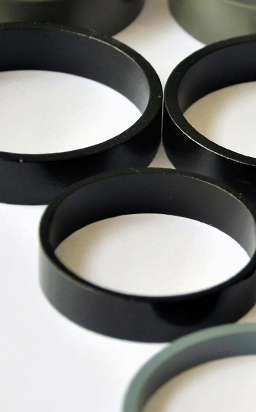

Thin walled ring magnet

It is mainly used for the receiving of stepping motor and spindle motor. The wall thickness of the product can be 0.5-2mm, and the radial multipole magnetization can also be realized.

Magnet assembly parts and injection parts

The magnet and metal parts are assembled, or the magnet and nylon and other materials are injection molded to form the integral stator, rotor and other magnet assembly parts, which are applied to the air conditioning outer box, water pump motor, mahjong motor and so on. The magnetic field intensity can reach 1000-3000 Gauss, which can realize multipole magnetization.

Spindle motor magnet

It is used for magnetic disk positioning sensor, printing adsorption, copier, fax magnetic roller, computer or vehicle mounted CD-ROM and DVD-ROM and other spindle motors; This kind of motor is characterized by high speed (over 10000 RPM), small volume, light weight, low vibration and low noise.
